Saphir

Introduction

The Saphir gate combines strength, elegance, and simplicity to secure your property with style. Made of steel, its high-quality finish adds a modern and neat touch while ensuring effective protection against the elements and external aggressions.

Thanks to its practical design, this swinging gate is easy to install (assembly instructions and necessary hardware are provided with the gate) and is perfectly suited for standard-sized entrances. For optimal peace of mind, it is also covered by a 2-year manufacturer warranty.

This gate is coated with a simple black primer and must be repainted before use.The Saphir gate combines strength, elegance, and simplicity to secure your property with style. Made of steel, its high-quality finish adds a modern and neat touch while ensuring effective protection against the elements and external aggressions.
Thanks to its practical design, this swinging gate is easy to install (assembly instructions and necessary hardware are provided with the gate) and is perfectly suited for standard-sized entrances. For optimal peace of mind, it is also covered by a 2-year manufacturer warranty.
This gate is coated with a simple black primer and must be repainted before use.

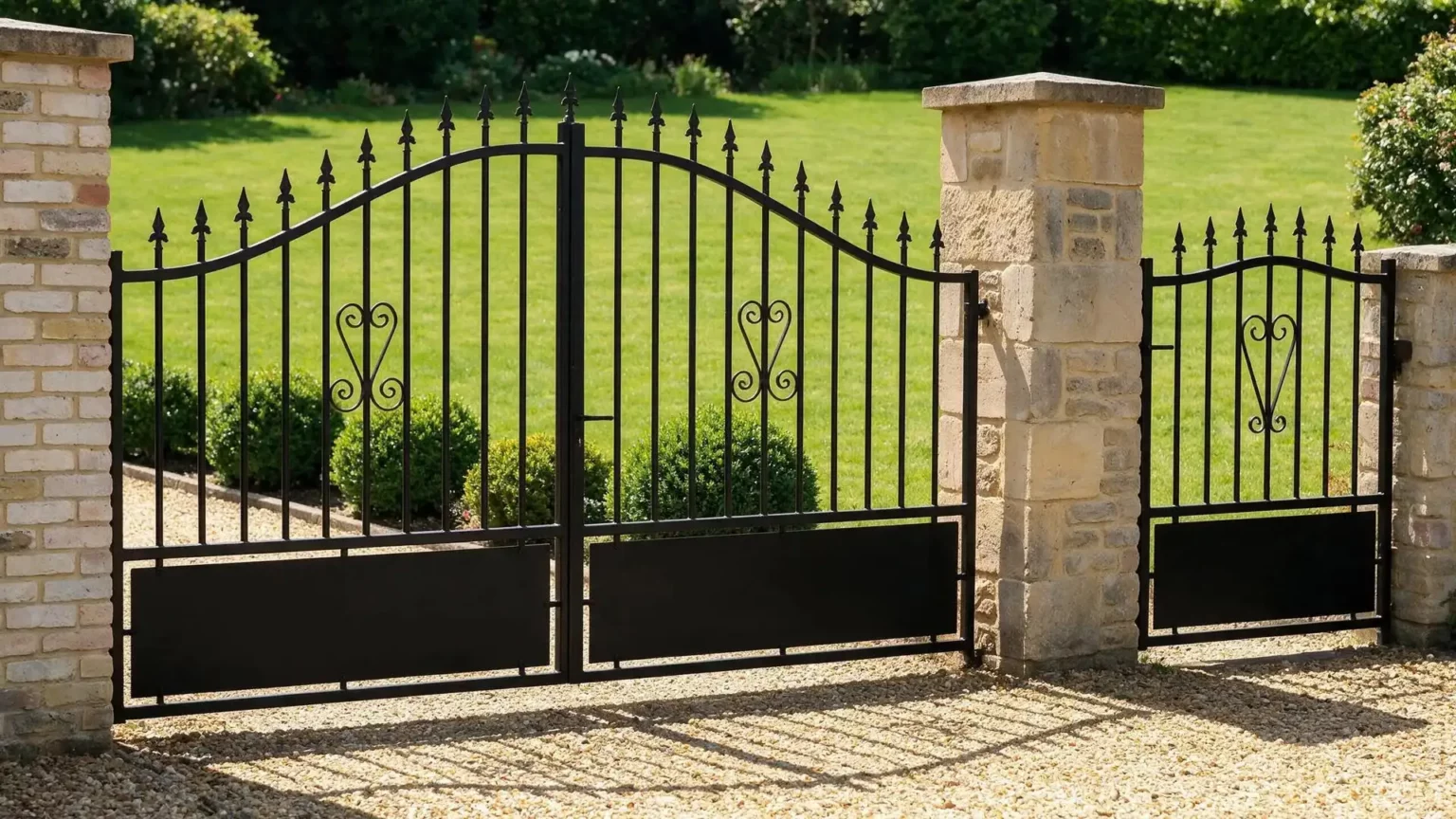

v02

Available dimensions

  • Gate size : 185 x 300 cm / 185 x 350 cm / 185 x 400 cm
  • Door size : 155 x 100 cm
download product flyer

Specifications

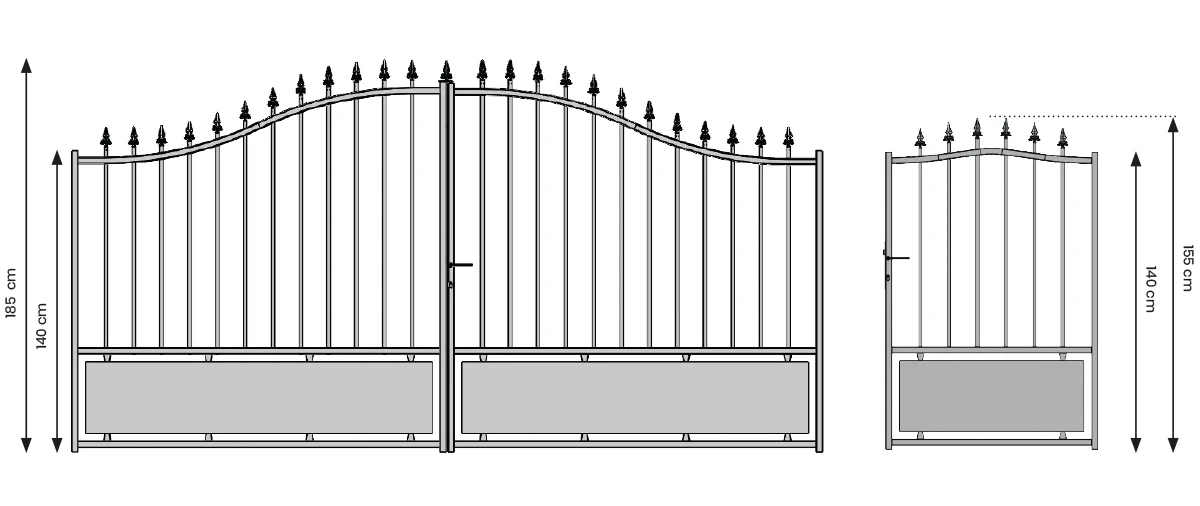

Date-Saphir
FrameSquare iron tube30 x 30 x 1.5 mm
CrossbarsRectangular iron tube30 x 20 x 1.5 mm
Infill barsRound iron tubeØ16 x 1 mm
FinialsCast iron
ScrollsFlat ironflat 16 mm th. 3 mm
Base platesFlat sheet metal Height 660/330 mmTh. 1.0/1.2 mm (10/12th)
IronmongeryReversible mortise cylinder lock – Double lever handle Top fixing lug to embed – Bottom pivot hinge to embed Ground stop
FinishSingle-coat black electrostatic epoxy powder paint
PackagingPolyethylene shrink wrap

Packaging details

Mixed
pallet		4 x Gate 3m
4 x Gate 3.5m
4 x Gate 4m
6 x Pedestrian gate 1m
Weight649 kg Net / 694 kg Gross
DimensionsL 200 x W 118 x H 190 cm
Wooden A-frame pallet
