Product Specs
- Elevation reduces the workload of the care staff.
- Raised position for easy cleaning under the bed: our system provides better accessibility than competing systems, with optimal clearance under the bedding.
- Possibility of partial reimbursement according to the regulations of each country.
- Simple adaptation of the cylinders to the weight of the slatted base + mattress to be raised.
- For the range of manual lifting beds, it is possible to adjust the thrust angles of the 2 cylinders to finetune the force required to lower or raise the bed.

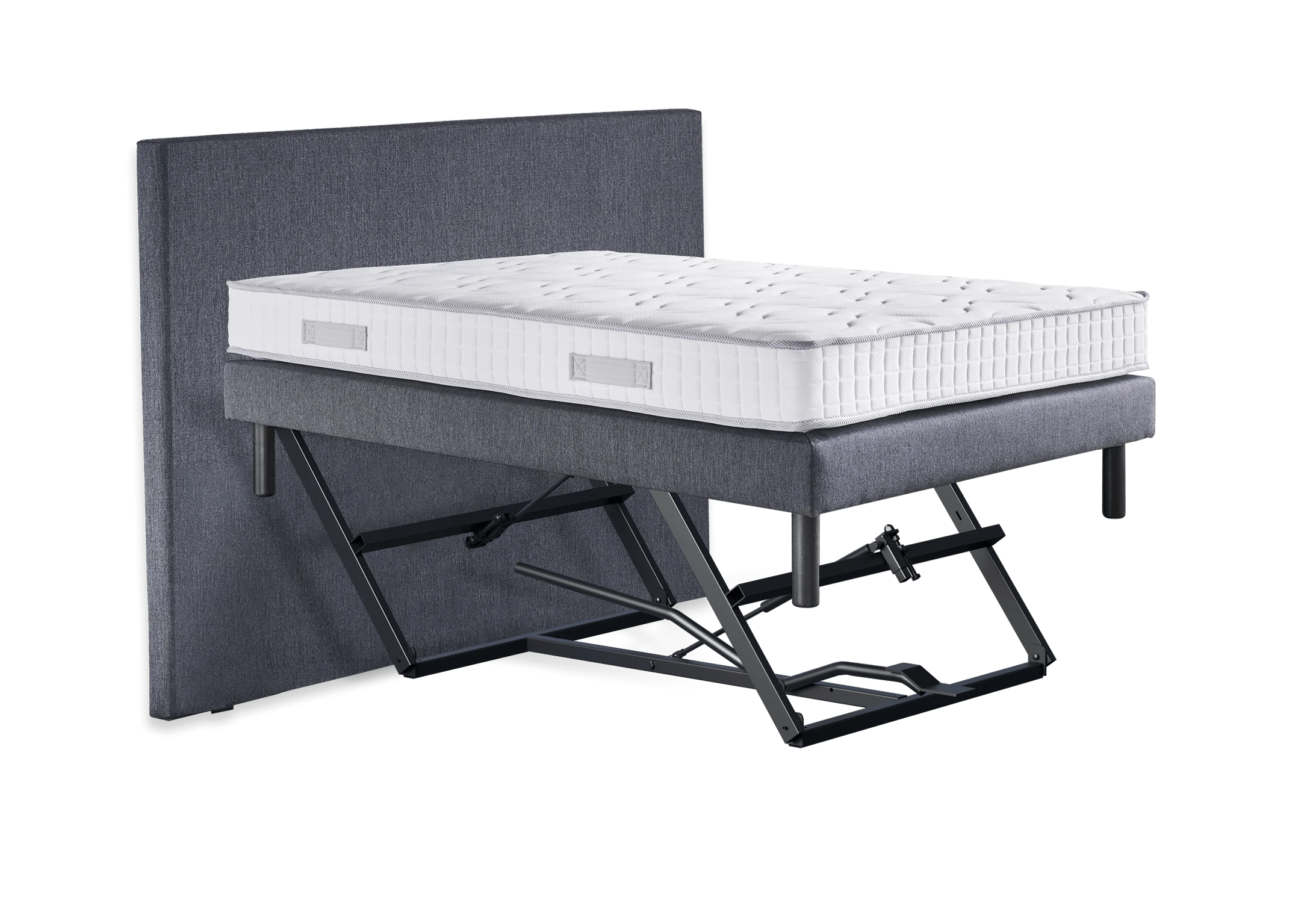

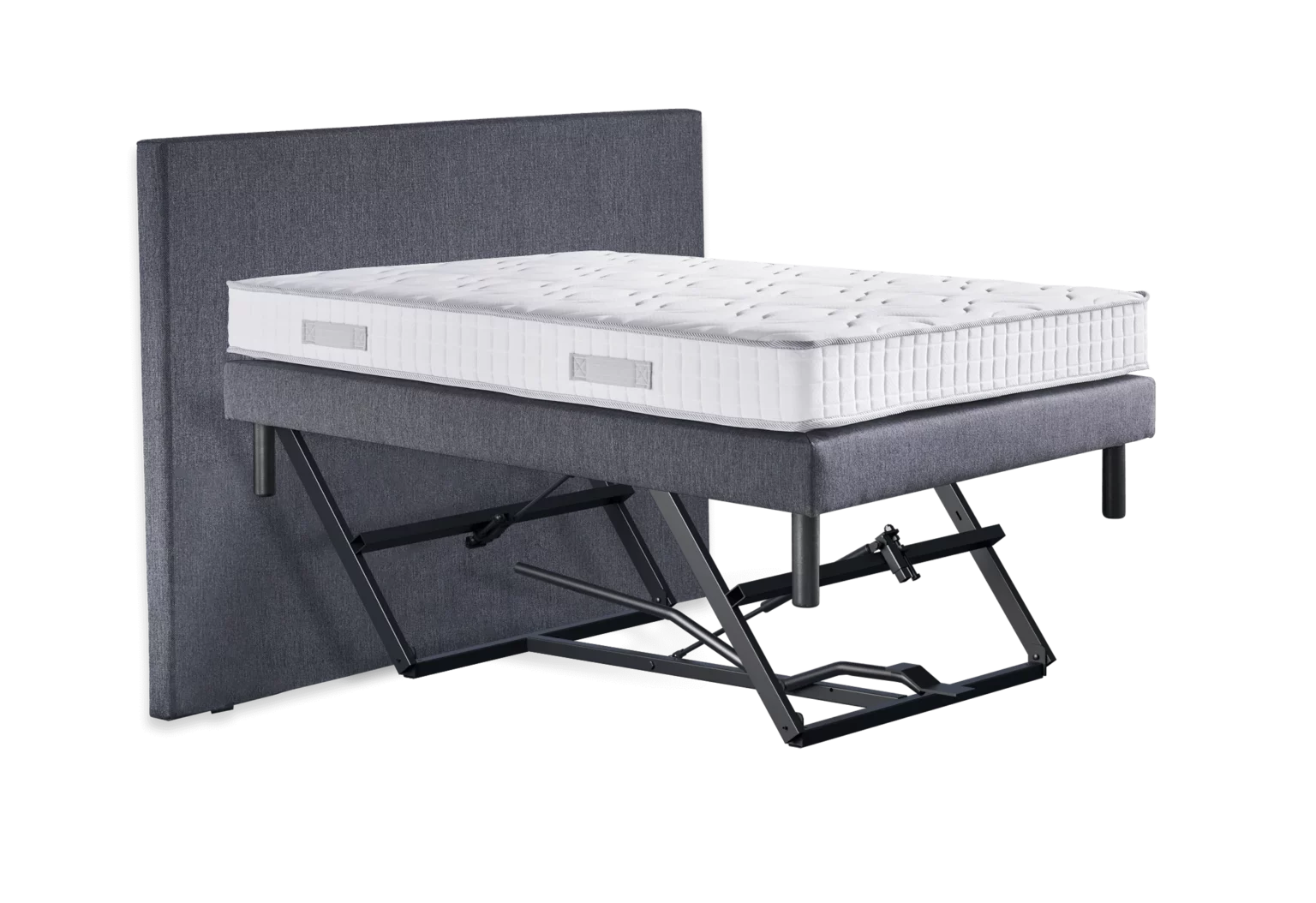

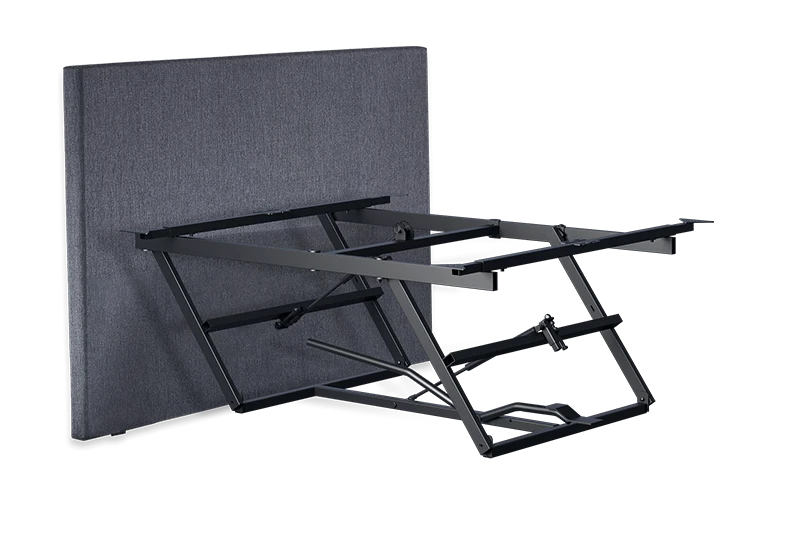

remote manual version
- Width of 70 à 180 cm
- Length of 190 à 210 cm(210 cm with crossbars)
- Open height : 56 cm
- Closed height : 20 cm
- Headboard clearance : 22 cm
remote ELECTRIC version
- Width of 70 à 180 cm
- Length of 190 à 210 cm(210 cm with crossbars)
- Single remote control
- Compatible with all bedding
- Adjustable working height
- Optional castors for Twin
- Open height : 54 cm
- Closed height : 15 cm
- Headboard clearance : 27 cm

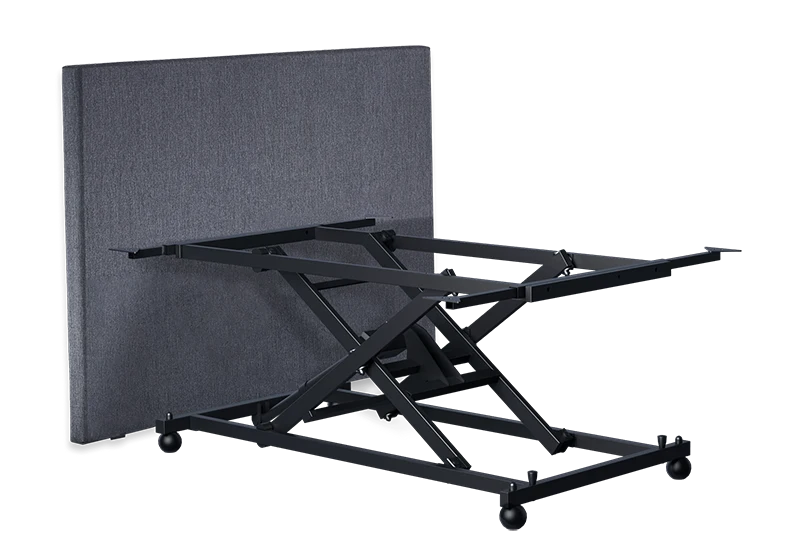

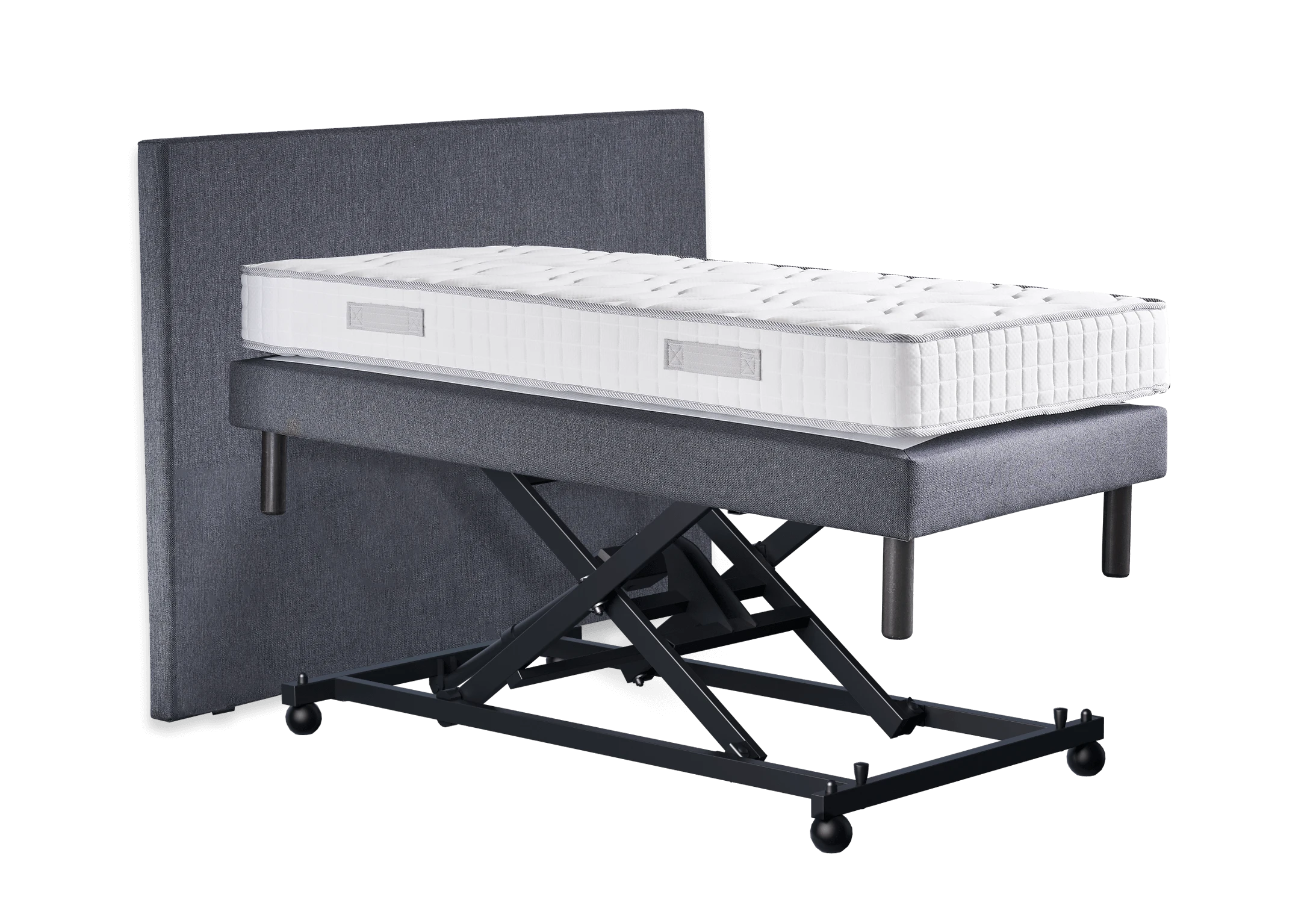

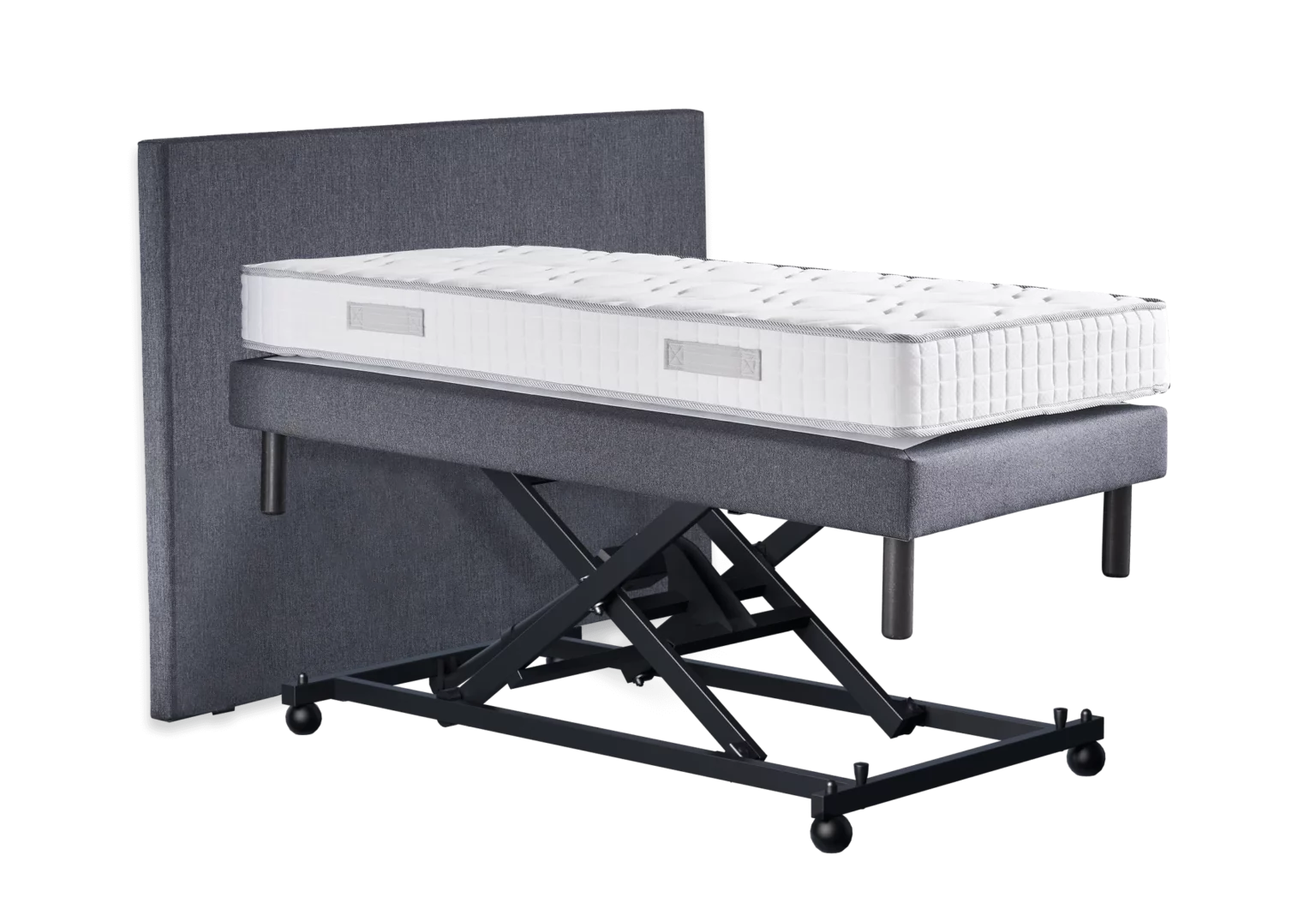

ELECTRIC LIFT version
- Width of 70 à 180 cm
- Length of 190 à 210 cm(210 cm with crossbars)
- Single remote control
- Adjustable working height
- Open height : 61 cm
- Closed height : 20 cm
Looking for more detailed
product information ?
remote manual version
- 2 ranges of electric lifts: The range of “electric lifting beds” which shift the headboard by 25 cm and the range of “lifts” which raise and lower vertically in case of limited space.
- Electric lifts can lift almost any bed base and mattress combination available on the market, but cannot lift people. Meral cannot be held responsible if further damage occurs as a result.
- Simple assembly of our range with simple wood screws in the short or long sides of the slats
- Infrared motor that allows the activation of an entire hotel park with one single remote control.
- Possible option of castors on the electric lifting bed model PM (Not on the lift, nor on the manual) for Twin version
- Possibility of pairing 2 small width bed bases together (70 to 100 cm max.), with crosspieces, for use with a single pedal (manual) or a single remote control (motorised)
- All lifting beds allow bed base widths from 70 to 180cm and lengths from 190 to 210cm.
- Delivery of 8 mechanisms/pallet (motor not mounted)
- This product is not intended to lift a person and Meral
cannot be held responsible if this is the case.
lifting bed family
