Product Specs
- The dual bed frame and stability of this mechanism guarantee undisturbed sleeping for 2 people similar to a normal bed.
- Mechanism for 12cm (4 ¾”)mattress with sleeping length of 2 meter (78”).
- Easy and light to convert from sofa to bed after removing the cushions.
- The seat cushions can be attached to the mechanism
- Headrest with locking and perfect functioning automatic closing function.
- Anti tilt function prevents collapsing of the bed when people by accident sit or fall or jump on the head side also allows to use this mechanism in contracting.
- Available in King , Queen and Full-size width.
- Eazy to implement in a traditional wooden framework sofa.
- A maximum weight of 260kg (2×130) in static load.
Handling instructions​
Mattress Dimensions

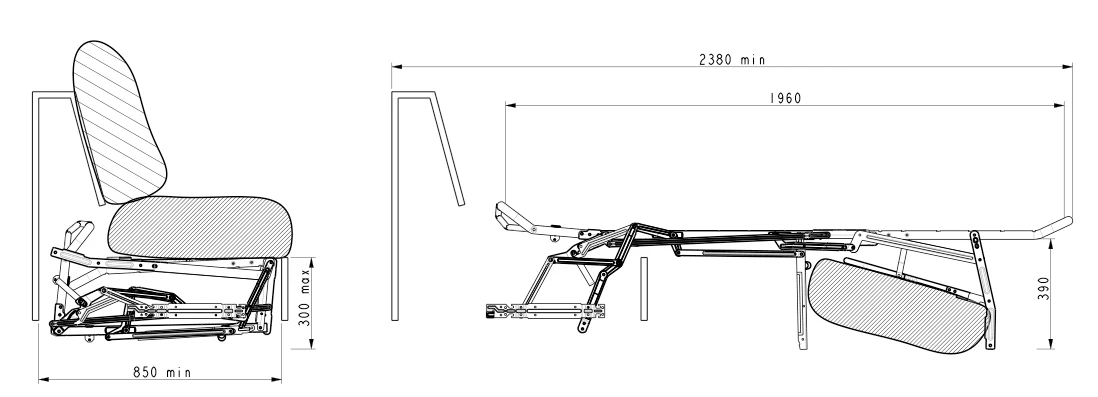

General Dimensions
| Ref | A | B (Mattress) |
| 140 cm | 152,5 cm | 133 cm |
| 160 cm | 172,5 cm | 153 cm |
| 190 cm | 202,5 cm | 183 cm |
